The right rule is simple: use the oil type and viscosity your vehicle manufacturer or replacement compressor specifies, never a generic substitute. Some ester (POE) oils work across refrigerant types, while many older PAG oils are not safe in R-1234yf systems, and PAG’s electrical conductivity makes it unsafe for most hybrid or electric compressors.
TL;DR:
- A replacement compressor may need a different viscosity, so check its label, follow supplier guidance, and record the oil type, viscosity, and amount added.
- Oil formulated for 1234yf refrigerant generally works in older 134a systems, but 134a oil lacks protective additives and is unsafe with 1234yf.
- Hybrid and electric compressors need nonconductive POE or specially formulated PAG, while certain Honda and Acura systems specify RL85HM oil.
- Technicians should measure the drained oil, refill the compressor while turning its shaft by hand, and evacuate the system for 30 to 45 minutes.
Table of Contents
- What is PAG oil and how does it work in your A/C system?
- What is ester oil and how does it differ from PAG?
- Can you mix PAG and ester oil, or switch between R-134a and R-1234yf?
- Why does viscosity matter when installing a replacement compressor?
- Is PAG oil safe for hybrid and electric vehicle A/C systems?
- How do technicians properly add or transfer A/C compressor oil?
- Why we follow OEM specs before adding any A/C oil
- Get your A/C oil and compressor checked the right way
- FAQ
- Sources
What is PAG oil and how does it work in your A/C system?
PAG, or polyalkylene glycol, is a synthetic lubricant designed to circulate with refrigerant through your air conditioning compressor, keeping internal parts moving smoothly under high pressure. It comes in several viscosities, most commonly PAG 46, PAG 100, and PAG 150, with the number roughly indicating thickness. Automakers select a specific grade based on compressor design, so a higher number isn’t automatically “better,” just different.
- PAG 46 is common in many late-model compact and midsize vehicles.
- PAG 100 and PAG 150 are often specified for larger displacement compressors or certain truck and SUV applications.
- PAG oil is hygroscopic, meaning it absorbs moisture from the air quickly once a container is opened.
Pro Tip: Reseal PAG oil containers immediately after use and store them tightly closed, since absorbed moisture can lead to internal corrosion and acid formation in your A/C system.
What is ester oil and how does it differ from PAG?
Ester oil, often labeled POE (polyolester), is a different synthetic lubricant family chosen for specific refrigerant and compressor combinations, including many R-1234yf systems and some electrically driven compressors. Unlike standard PAG, certain POE formulations are non-conductive, which matters for hybrid and electric vehicle A/C systems where the compressor is powered electrically rather than by a belt.
- POE oils generally tolerate moisture somewhat differently than PAG, though both still require careful handling.
- POE is frequently paired with R-1234yf refrigerant and oils that include acid-reducing additives.
- Mixing POE and PAG is not something to do casually. Always confirm compatibility with the vehicle or compressor manufacturer first.
The practical difference comes down to application: PAG dominates traditional belt-driven compressors, while POE fills a specific role in modern refrigerant systems and electric-compressor designs.
Can you mix PAG and ester oil, or switch between R-134a and R-1234yf?

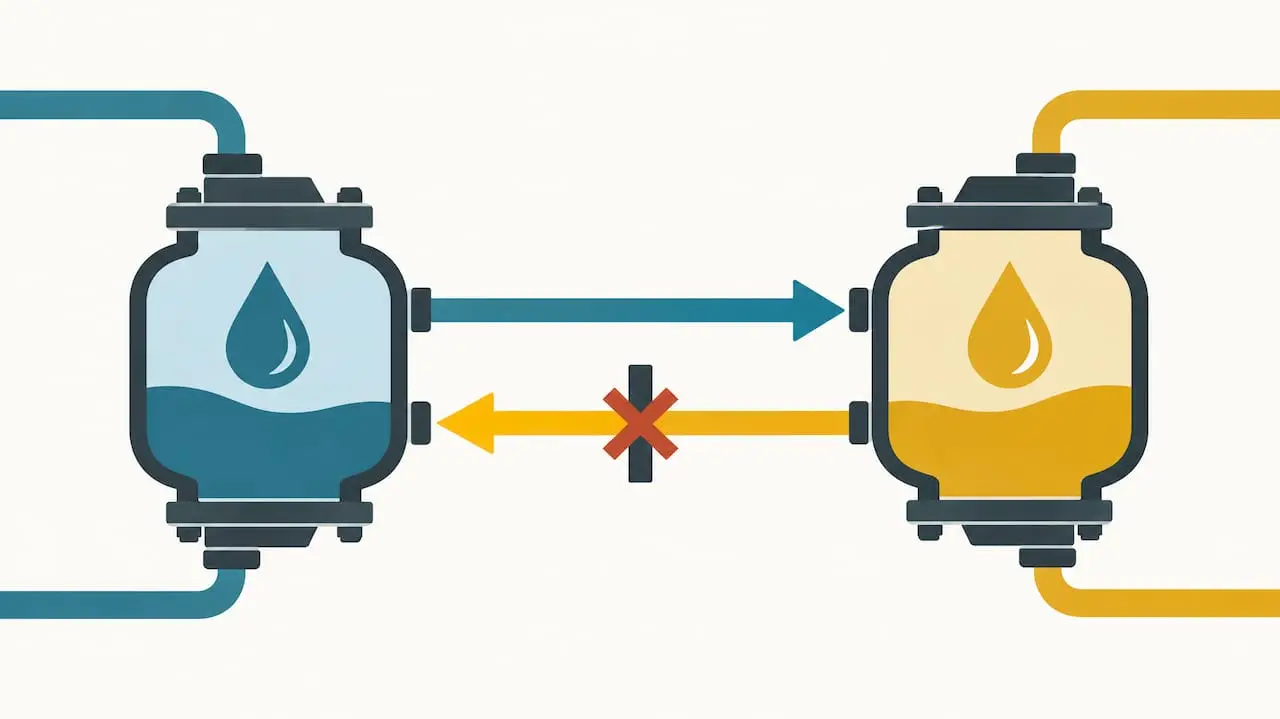

Compatibility between oils and refrigerants isn’t symmetrical, and getting the direction wrong causes real damage. R-1234yf-specific oils, which typically include acid-reducing additives, are generally backward compatible with older R-134a systems. The reverse is not true: R-134a oils are not considered safe for use in R-1234yf systems, since they lack the additive package that protects against the newer refrigerant’s chemistry, according to industry guidance on R-1234yf oil formulation.
Using the incorrect oil type or viscosity is one of the most common causes of compressor failure, and generic “universal” oils often fail to match the additive and viscosity profile an OEM designed around, according to DENSO’s technical guidance on compressor oil.
Before adding any oil to a vehicle, work through this sequence:
- Check the underhood A/C system tag for the specified oil type and refrigerant.
- Check the replacement compressor’s label and included paperwork, since it may differ from the original.
- Review any manufacturer bulletins or notes tied to that specific compressor part number.
- Confirm with the parts supplier before mixing oil types, even when a system seems similar to a familiar one.
Why does viscosity matter when installing a replacement compressor?
A replacement compressor doesn’t always use the same internal design as the original equipment unit, and that difference can call for a different PAG viscosity entirely. Bearing clearances, internal lubrication paths, and shaft seal designs vary by manufacturer, so a compressor that looks similar on the outside may need a thicker or thinner oil to run quietly and last, according to MACS Mobile Air Climate’s guidance on replacement compressor oil.
This means the vehicle’s original A/C tag isn’t always the final word once a compressor has been replaced.
- Compare the vehicle’s factory oil spec against the replacement compressor’s own label before filling.
- Document the oil type, viscosity, and exact volume added for warranty records.
- Follow the parts supplier’s written recommendation over general assumptions about “what this model usually takes.”
Pro Tip: Keep the compressor’s packaging and any included oil-spec sheet until the job is finished and the warranty window has passed, since a mismatch here is one of the fastest ways to void coverage.
Is PAG oil safe for hybrid and electric vehicle A/C systems?
Standard PAG oil is electrically conductive, which creates a real safety concern in hybrid and electric vehicles where the A/C compressor is driven by a high-voltage electric motor rather than a belt, according to AA1Car’s PAG oil guide. Using conductive oil in that kind of system risks electrical faults.
- Non-conductive POE oils or specially formulated PAG (often labeled SP-A2) are used instead.
- Some manufacturers specify their own branded oil. Certain Honda and Acura models, for example, call for POE oil labeled RL85HM rather than traditional PAG in R-1234yf systems.
- Always verify the exact oil specification for a hybrid or EV compressor before any service, since the wrong choice carries an electrical safety risk beyond ordinary lubrication concerns.
How do technicians properly add or transfer A/C compressor oil?
Adding oil correctly takes more care than pouring it into the system. When a compressor has a drain plug, technicians fill through that plug and rotate the compressor shaft by hand to distribute oil internally before reassembly, avoiding the liquid slugging that can damage a compressor on startup, according to MACS’s compressor filling procedure.
- Drain the old oil and measure the exact volume removed.
- Fill the new compressor through the drain plug when one exists, rotating the shaft as oil is added.
- Without a drain plug, add oil through the suction port while slowly rotating the shaft.
- Pull a vacuum for 30 to 45 minutes to remove moisture introduced during the service, then reseal any opened oil containers right away.
Pro Tip: Skipping an adequate vacuum evacuation is one of the quickest ways to leave moisture in a freshly serviced system, which reacts with PAG oil over time and leads to premature corrosion.
Why we follow OEM specs before adding any A/C oil
We follow the oil type and viscosity specified by the vehicle manufacturer or the replacement compressor itself, never a generic substitute. When you’re dealing with a hybrid compressor, a replacement part, or any uncertainty, that’s the point to bring it to a professional rather than guess.
— Kwik Kar
Get your A/C oil and compressor checked the right way
We take the guesswork out of A/C service by starting with your vehicle’s exact specification, not a one-size-fits-all bottle off the shelf. We inspect your system, verify the correct oil type and viscosity, and handle compressor installation carefully.
- ASE-certified inspection confirming the correct oil and refrigerant for your system.
- Oil verification or replacement performed to OEM or compressor-supplier specs.
- Digital Vehicle Inspection photos and videos so you see exactly what we find and why.
If your car’s A/C isn’t blowing cold, the compressor was recently replaced, or you’re simply due for a check before Texas summer heat sets in, schedule an A/C, heating, and cooling inspection with our team in Irving and get a clear, documented answer.
FAQ
Can I use ester oil instead of PAG oil?
Only when the vehicle or compressor manufacturer specifically approves it, since PAG and ester (POE) oils are formulated differently and aren’t interchangeable by default. Some R-1234yf and electric-compressor systems call for POE specifically, while most traditional belt-driven compressors require PAG. Check your system’s oil tag or compressor label before substituting.
What is a substitute for PAG oil?
There is no universal substitute, because the correct replacement depends entirely on your specific vehicle or compressor’s specification. Some systems call for a different PAG viscosity, while hybrid or electric vehicle compressors often require non-conductive oil such as POE or a specially formulated PAG like SP-A2, according to AA1Car’s guidance on PAG conductivity.
Can you add too much PAG oil to an A/C system?
Yes, overfilling an A/C system with oil can reduce cooling performance and put extra strain on the compressor. The correct amount is tied to the specific compressor and system design, which is why technicians measure drained oil and match the refill volume precisely rather than estimating.
Are ester-based oils better than PAG oils?
Neither oil is universally better. Each is formulated for specific refrigerants and compressor designs, and ester (POE) oils are often required for certain R-1234yf systems or electrically driven compressors because some are non-conductive, according to Four Seasons’ guidance on R-1234yf and POE oil. The right choice always comes down to what your specific vehicle or compressor calls for.
Sources
The compatibility and safety guidance above draws on published technician and manufacturer resources. We encourage checking your vehicle’s service manual or the replacement compressor’s included paperwork for the final word on your specific system.
- AA1Car — PAG oil guide
- MACS Mobile Air Climate — replacement compressor oil guidance
- DENSO technical commentary — why the right oil matters
- Four Seasons TEMP Select — R-1234yf and POE oil flyer (2024)
