A failing MAP sensor almost always shows up as one of five things: a check engine light with a code between P0105 and P0109, worse gas mileage, a rough or shaky idle, hesitation when you hit the gas, or a stall you can’t explain. If you’re seeing any of these, your first move isn’t a parts store trip. It’s a code scan and a two-minute look at the sensor’s wiring harness and vacuum hose.
The manifold absolute pressure sensor tells your engine’s computer how much air is coming into the intake manifold, and the computer uses that number to decide how much fuel to inject. When the sensor lies to the computer, either by getting stuck, drifting out of range, or dropping its signal entirely, the fuel mixture goes wrong in one direction or the other. Rich mixtures smell like fuel and sometimes puff black smoke. Lean mixtures run hotter and can knock or ping under load.
- Check engine light with codes in the P0105–P0109 range
- Noticeably worse fuel economy over a week or two
- Rough, uneven idle or the engine shaking at a stoplight
- Hesitation, surging, or a stumble on acceleration
- Random stalling, especially at idle or during cold starts
- Black exhaust smoke or a strong gas smell from a rich condition
Pro Tip: A cheap OBD-II scanner pays for itself the first time you use it. If you’re chasing a MAP sensor issue without pulling codes first, you’re guessing.
If your car stalls repeatedly or dumps visible black smoke, stop driving it beyond getting it home or to a shop. A rich-running engine can wash oil off the cylinder walls and, over time, damage the catalytic converter, turning a $60 sensor problem into a $1,500 repair.
Key Takeaways
A bad MAP sensor produces a check engine light with a P0105–P0109 code alongside poor fuel economy, rough idle, hesitation, or stalling, and confirming the fault requires a KOEO voltage or frequency baseline check before any part gets replaced.
| Point | Details |
|---|---|
| Watch for the code combo | A P0105–P0109 code plus rough idle or poor mileage points strongly at the MAP circuit. |
| Test before you buy | Confirm KOEO voltage (≈4.0–5.0 V) or frequency (≈150–160 Hz) drops correctly at idle before replacing the sensor. |
| Rule out wiring first | A missing 5V reference or bad ground almost always means a wiring or ECM issue, not the sensor. |
| Cleaning has limits | Cleaning fixes oil or carbon fouling but never repairs internal electronic failure. |
| Get a professional check when unsure | Kwik Kar’s ASE-certified technicians combine OBD-II live data and Digital Vehicle Inspection photos to confirm the exact cause before repair. |
Table of Contents
- What Are the Common Map Sensor Symptoms and What Do They Mean?
- What Causes Map Sensor Issues, and What Should You Check First?
- How Do You Test a Map Sensor Step by Step?
- Can Cleaning a Map Sensor Actually Fix It?
- When Should You Take Your Car to a Shop Instead?
- How Kwik Kar Diagnoses and Fixes MAP Sensor Problems
- Sources
- FAQ
What Are the Common Map Sensor Symptoms and What Do They Mean?
Not every symptom points to the same underlying fault, and figuring out which one you’re dealing with saves you from throwing parts at the problem. Here’s how each map sensor symptom actually plays out and what it tells you about the sensor’s behavior.
1. Check engine light with a P0105–P0109 code. This is the most direct signal you’ll get. P0105 usually flags a circuit malfunction, P0106 points to a range or performance problem (the reading doesn’t match what the engine expects at that RPM and load), P0107 and P0108 indicate the signal is stuck low or high, and P0109 flags an intermittent connection. None of these codes tell you definitively that the sensor itself is bad. They tell you where in the circuit the computer thinks the fault sits, which is why the next step is always testing, not swapping.
2. Poor fuel economy. A MAP sensor reading incorrectly high tells the computer there is more air in the manifold than there really is, so it adds more fuel than the engine needs. You’ll notice this first at the pump, not on a dashboard readout. If your fill-ups have increased without a change in driving habits, this is often an early sign something’s off, well before a check engine light comes on.
3. Black smoke or a fuel odor. When a MAP sensor reads high and the ECM over-fuels the engine, the extra unburned fuel can show up as black exhaust smoke or a noticeable gas smell, particularly at idle or under light acceleration. This is a rich-running symptom, and it’s one of the more obvious ones because you can literally smell it.
4. Lean-running signs. The opposite failure mode, a MAP sensor reading too low, tells the computer there’s less air than there actually is. The engine leans out, runs hotter than normal, and can develop a knock or ping under load as the air-fuel mixture burns too aggressively. Lean conditions are harder to notice day to day, but they’re more damaging over time because sustained high cylinder temperatures accelerate wear on pistons and valves.
5. Rough idle and surging. A MAP sensor sending erratic or noisy data confuses the ECM’s fuel and timing calculations moment to moment, which shows up as the engine shaking at a stop or the RPM needle wandering up and down on its own. This is different from a smooth, steady rough idle caused by something mechanical like a vacuum leak. Sensor-caused roughness tends to be inconsistent, sometimes fine, sometimes bad, which is itself a clue.
6. Hesitation or stumble on acceleration. During a throttle snap, the MAP sensor is supposed to register a fast pressure change so the ECM can adjust fuel delivery instantly. A sensor with a slow or stuck response can’t keep up, so you feel a flat spot or hesitation right when you need power, like merging onto a highway.
7. Stalling. This is the symptom that tells you severity has crossed a line. A MAP signal that drops out completely, or gets stuck at a value that doesn’t match idle conditions, can cause the engine to stall outright, especially right after startup or when coming to a stop. If your vehicle relies on the MAP sensor as its primary load input rather than pairing it with a mass airflow sensor, stalling and even limp mode can happen more suddenly, because the computer has fewer other data points to fall back on and correct the error.
8. Cold-start trouble and failed emissions tests. MAP data plays a big role in cold-start fuel calculations, so a bad sensor often makes a car cranky to start on cold mornings. It also throws off the air-fuel ratios that emissions testing equipment checks, which means a failing sensor can be the reason a vehicle doesn’t pass state inspection even if it otherwise drives fine.
One more nuance worth knowing: vehicles that use both a MAP sensor and a mass airflow (MAF) sensor tend to mask symptoms longer, because the ECM cross-checks one against the other and can partially compensate. MAP-only systems, common on many older and some current four-cylinder engines, have no such backup. If your car uses MAP as its sole air-measurement strategy, take these symptoms more seriously and sooner.
What Causes Map Sensor Issues, and What Should You Check First?
Before you even think about testing the sensor itself, rule out the cheaper, more common problems that mimic map sensor failure symptoms almost perfectly. A surprising number of “bad MAP sensor” diagnoses turn out to be something else entirely.
- Lost reference voltage or ground. Every MAP sensor needs a steady 5-volt reference and a solid ground to produce accurate output. If either is missing or corroded, the sensor will read wrong even if it’s mechanically perfect.
- Vacuum or hose leaks. A cracked, disconnected, or partially clogged vacuum hose between the intake manifold and the sensor changes the pressure the sensor sees, producing symptoms that look identical to sensor failure.
- Oil or carbon contamination. MAP sensors sit close to the intake, and over time oil vapor or carbon buildup can coat the sensing element and skew readings without killing the sensor outright.
- Physical or heat damage. Engine bay heat cycles and vibration eventually crack sensor housings or degrade internal components, especially on higher-mileage vehicles.
- Connector corrosion. A loose or oxidized electrical connector at the sensor is one of the most common, most overlooked causes of intermittent codes.
Losing the 5-volt reference or the ground path is worth calling out on its own, because it’s the single most misdiagnosed cause. Mechanics consistently point out that a missing 5V reference or ground almost always means a wiring or ECM problem, not a bad sensor. Replace the sensor in that situation and you’ll be back with the same code in a week.
Pro Tip: Before you condemn the MAP sensor, unplug the connector and look for green or white corrosion on the pins, and wiggle the harness near the connector while watching live data. A code that flickers when you wiggle the wire is almost never the sensor’s fault.
It also helps to cross-check nearby sensors rather than fixating on the MAP alone. The manifold air temperature (IAT) sensor, throttle position sensor (TPS), and mass airflow sensor all feed related data into the same fuel calculations. If two sensors are throwing marginal readings at once, you’re more likely looking at a shared wiring, vacuum, or grounding issue than two coincidental sensor failures.
How Do You Test a Map Sensor Step by Step?
Testing a MAP sensor is one of the more approachable DIY diagnostics you can do with a scan tool and a basic multimeter. The workflow below follows the same sequence professional technicians use, just scaled for a driveway garage.
1. Pull the codes first. Plug in an OBD-II scanner and read every stored code, not just the MAP-related ones. Codes in the P0105–P0109 range point directly at the MAP circuit, but related fuel trim codes (like P0171 or P0174 for lean conditions) add context about which direction the sensor is skewing. Write down the freeze frame data if your scanner shows it. That snapshot of engine conditions when the code triggered is often more useful than the code itself.

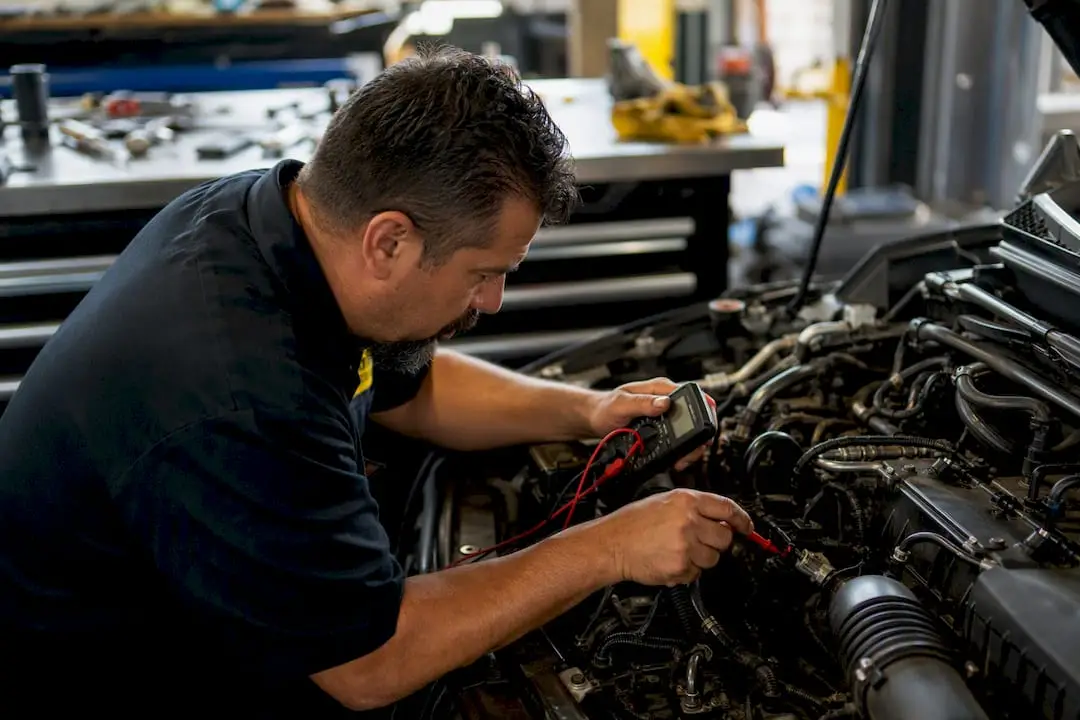

2. Establish a KOEO baseline. With the key on and the engine off (KOEO), back-probe the sensor’s signal wire with your multimeter. Most voltage-type MAP sensors should read about 4.0 to 5.0 volts at atmospheric pressure with the engine off. That number represents the sensor telling the computer “no vacuum yet, manifold is at outside air pressure.”
3. Start the engine and check idle voltage. Once running, vacuum in the intake manifold increases and the voltage should drop to a lower voltage level at a normal idle. A sensor stuck near its KOEO value, or one that doesn’t move at all, is a strong sign of internal failure.
4. Adjust for frequency-type sensors. Not every MAP sensor outputs a voltage. Some, particularly on certain Ford and GM applications, output a frequency signal instead. These typically read about 150 to 160 Hz at sea level and drop as vacuum increases, the mirror image of how voltage-type sensors behave. If you’re testing one of these, set your multimeter to Hz mode rather than DC volts, and confirm the trigger slope setting, because the wrong mode gives you nonsense numbers that look like a bad sensor even when it’s fine.
5. Verify reference voltage and ground before blaming the sensor. Back-probe the reference wire (should read close to 5 volts with the key on) and check the ground wire for continuity to chassis ground. If either fails, you’re chasing a wiring or ECM problem, not a sensor problem.
6. Do a hand-vacuum or throttle-snap test. With the engine running and your meter connected, snap the throttle open and closed while watching the voltage or frequency change in real time. A healthy sensor responds immediately and smoothly. A sensor that lags, jumps erratically, or doesn’t move at all under a hand-vacuum pump test is failing internally.
Altitude changes these numbers meaningfully. A vehicle tested at 5,000 feet of elevation will show a lower atmospheric baseline than one tested at sea level, so don’t panic if your KOEO reading is a bit under 4.0 volts if you live somewhere mountainous.
| Test Stage | Voltage-Type Sensor | Frequency-Type Sensor |
|---|---|---|
| KOEO (key on, engine off) | ≈ 4.0–5.0 V | ≈ 150–160 Hz at sea level |
| Normal idle | ≈ 0.5–1.5 V | Drops as vacuum increases |
| 5V reference wire | ≈ 5.0 V (key on) | ≈ 5.0 V (key on) |
| Throttle snap response | Smooth, immediate change | Smooth, immediate change |
Pro Tip: Always back-probe the connector with pin probes or a lead adapter instead of piercing the wire insulation or the sensor housing itself. Piercing seals lets moisture in and can cause a fresh intermittent fault months down the road, right where you tested.
If every reading checks out at the sensor but the code keeps returning, the problem lives upstream in the wiring harness or the ECM itself. That’s when it’s worth pulling in a wiring diagnostic rather than replacing parts on a hunch. Readers interested in how live-data interpretation extends to other engine sensors can find additional context in exhaust system diagnostic tools used for broader engine management troubleshooting.
Can Cleaning a Map Sensor Actually Fix It?
Sometimes, yes, but only for a specific type of problem. Cleaning addresses contamination. It does nothing for internal electronic failure, and treating it as a universal fix is how a lot of DIYers waste an afternoon and still end up buying a new sensor anyway.
A light oily film or carbon dust on the sensing element often responds well to cleaning, especially on higher-mileage engines with some crankcase blow-by. If your sensor looks visibly dirty when you pull it and your symptoms are mild (slightly rough idle, marginal fuel economy loss), cleaning is a reasonable first step before spending money on a replacement part.
Here’s where people go wrong, though, and it’s worth being specific about it:
- Never touch or press on the diaphragm inside the sensor port. It’s a thin, pressure-sensitive membrane, and even light contact can permanently throw off its calibration.
- Use only a plastic-safe, non-residue electronics or sensor cleaner. Carburetor cleaner, brake cleaner, and general-purpose solvents leave residue or attack the plastic housing and internal components.
- Skip the compressed air. Blasting shop air directly into the sensor port can rupture the diaphragm or drive contaminants deeper into the housing instead of clearing them out.
- Let the sensor dry completely before reconnecting it. Reinstalling while damp with cleaner invites a new intermittent fault.
Pro Tip: Look at what’s actually in the port before you decide. A light, even oily film usually cleans up fine. A hard, crusty carbon buildup, or a sensor that still gives erratic readings after cleaning, means the electronics inside are already compromised and replacement is the honest next step.
After cleaning, clear the stored codes and drive the vehicle through a few heat cycles before deciding whether the fix worked. If the check engine light returns with the same P0105–P0109 code, the sensor’s internal electronics, not surface contamination, were the real problem all along. At that point, swapping the sensor is the only remaining fix, and it’s a straightforward part on most vehicles. If your rough idle or hesitation persists even after a clean MAP sensor tests good, a dirty throttle body is worth a look too, since throttle body contamination causes similar idle and throttle response symptoms through a completely separate mechanism.
When Should You Take Your Car to a Shop Instead?
If your multimeter readings are inconclusive, your codes keep returning after a sensor swap, or you simply don’t want to spend an afternoon under the hood, professional diagnosis is the sensible move. It’s also the right call any time you’re dealing with stalling or visible black smoke, since driving on a badly running engine risks catalytic converter damage that costs far more than the original repair.
A proper shop diagnostic goes further than a basic code scan. Technicians typically run OBD-II live data logging while driving the vehicle, use an oscilloscope or multimeter to verify sensor output under real conditions rather than just at idle, inspect the full wiring harness and connectors for corrosion, and pressure-test vacuum and hose connections. That combination catches intermittent faults that a one-time DIY test can easily miss.
Replacement costs vary by vehicle, but as a ballpark, parts typically run $30 to $120 and labor adds another $50 to $120, depending on how accessible the sensor is and local labor rates. A MAP sensor tucked under the intake manifold on some V6 or V8 engines takes considerably longer to reach than one bolted to the side of a four-cylinder’s intake, and that access difference is usually what separates the low end of that range from the high end.
When you do take it in, ask for a few specific things so you know you’re getting real diagnostic work, not a parts-cannon guess:
- Request the actual OBD-II printout showing which codes and freeze frame data triggered the visit.
- Ask to see the live sensor readings the technician recorded, not just a pass/fail verdict.
- Request Digital Vehicle Inspection photos or video showing the sensor, connector, and any wiring issues found.
- Confirm whether the shop tested the wiring and reference voltage separately from the sensor itself.
A shop that can show you the actual voltage trace or the corroded connector pin, rather than just telling you “it needs a new sensor,” is doing the job right. Engine diagnostic services built around that kind of transparency save you from paying twice for the same problem.
How Kwik Kar Diagnoses and Fixes MAP Sensor Problems
Chasing a rough idle or a mystery check engine light through trial and error costs more in wasted parts than a proper diagnostic visit ever will. Kwik Kar’s ASE-certified technicians run the same OBD-II scan, live-data, and multimeter verification steps covered above, then confirm the finding with a Digital Vehicle Inspection so you see the exact wiring, connector, or sensor issue on your phone before any work begins.
The appointment flow is simple: we scan for codes, pull live sensor data while the engine runs, inspect the wiring and vacuum connections, and send you photos and a straightforward estimate before touching anything. If the problem turns out to be a corroded connector or a wiring fault instead of the sensor itself, our electrical repair service handles it directly instead of replacing a part that was never broken.
Bring whatever codes your own scanner pulled and a description of when the symptoms show up (cold start, highway speed, idle at a light). That context speeds up diagnosis considerably. You can schedule a visit through our engine diagnostic service page, and current customers can also check our service specials for available savings on diagnostic and repair visits.
Sources
- How to test MAP sensor — Technician Academy
- How to test MAP or BP/MAP sensors with a multimeter — Fluke
- Bad MAP sensor symptoms — Steer
FAQ
What Happens if a MAP Sensor Is Bad?
The engine’s computer miscalculates the air-fuel mixture, causing rough idle, hesitation, poor fuel economy, or stalling, and often triggers a check engine light with a P0105–P0109 code.
How Do You Check if a Map Sensor Is Working Properly?
Scan for trouble codes first, then back-probe the sensor with a multimeter to confirm it reads about 4.0 to 5.0 volts key-on-engine-off and drops to roughly 0.5 to 1.5 volts at idle, with a smooth response during a throttle snap test.
Will Cleaning a Map Sensor Fix It?
Cleaning can resolve issues caused by oil or carbon contamination but cannot fix internal electronic or frequency-output failures, so persistent codes after cleaning usually mean the sensor needs replacement.
What Does a Bad MAP Sensor Feel Like?
You’ll typically notice a shaky or rough idle, hesitation when accelerating, occasional stalling, and reduced fuel economy, sometimes with a fuel smell or black exhaust smoke if the mixture is running rich.
Can I Drive With a Bad MAP Sensor?
Short distances at low symptom severity are usually fine, but stalling or visible black smoke means you should limit driving to avoid catalytic converter damage and get it scanned right away.
